Chapter 14: Aortic Valve

This chapter covers echocardiographic evaluation of the aortic valve, including stenosis and regurgitation. Clinical examples and comparative imaging will illustrate disease mechanisms.

1

Figures

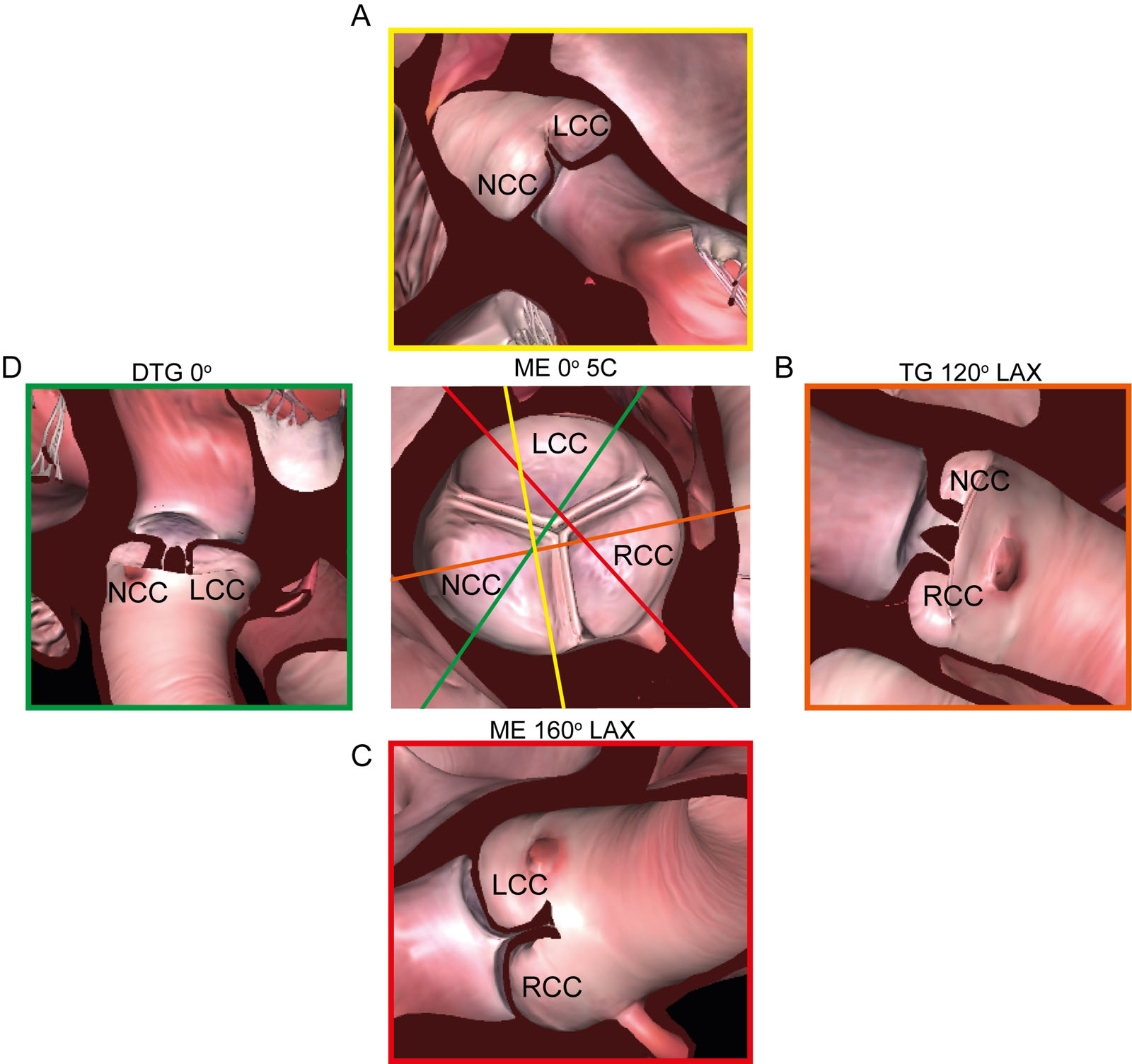

AoV and 2D TEE views. This diagram shows the relationship of ME, TG and DTG TEE views to the AoV cusps.<em> Abbreviations</em>: 2D, two-dimensional; 5C, five-chamber; AoV, aortic valve; DTG, deep transgastric; LAX, long-axis; LCC left coronary cusp; ME, mid-esophageal; NCC, non-coronary cusp; RCC, right coronary cusp; TEE, transesophageal echocardiography; TG, transgastric.

eFigure 14.7

AoV and 2D TEE views. This diagram shows the relationship of ME, TG and DTG TEE views to the AoV cusps. Abbreviations: 2D, two-dimensional; 5C, five-chamber; AoV, aortic valve; DTG, deep transgastric; LAX, long-axis; LCC left coronary cusp; ME, mid-esophageal; NCC, non-coronary cusp; RCC, right coronary cusp; TEE, transesophageal echocardiography; TG, transgastric.

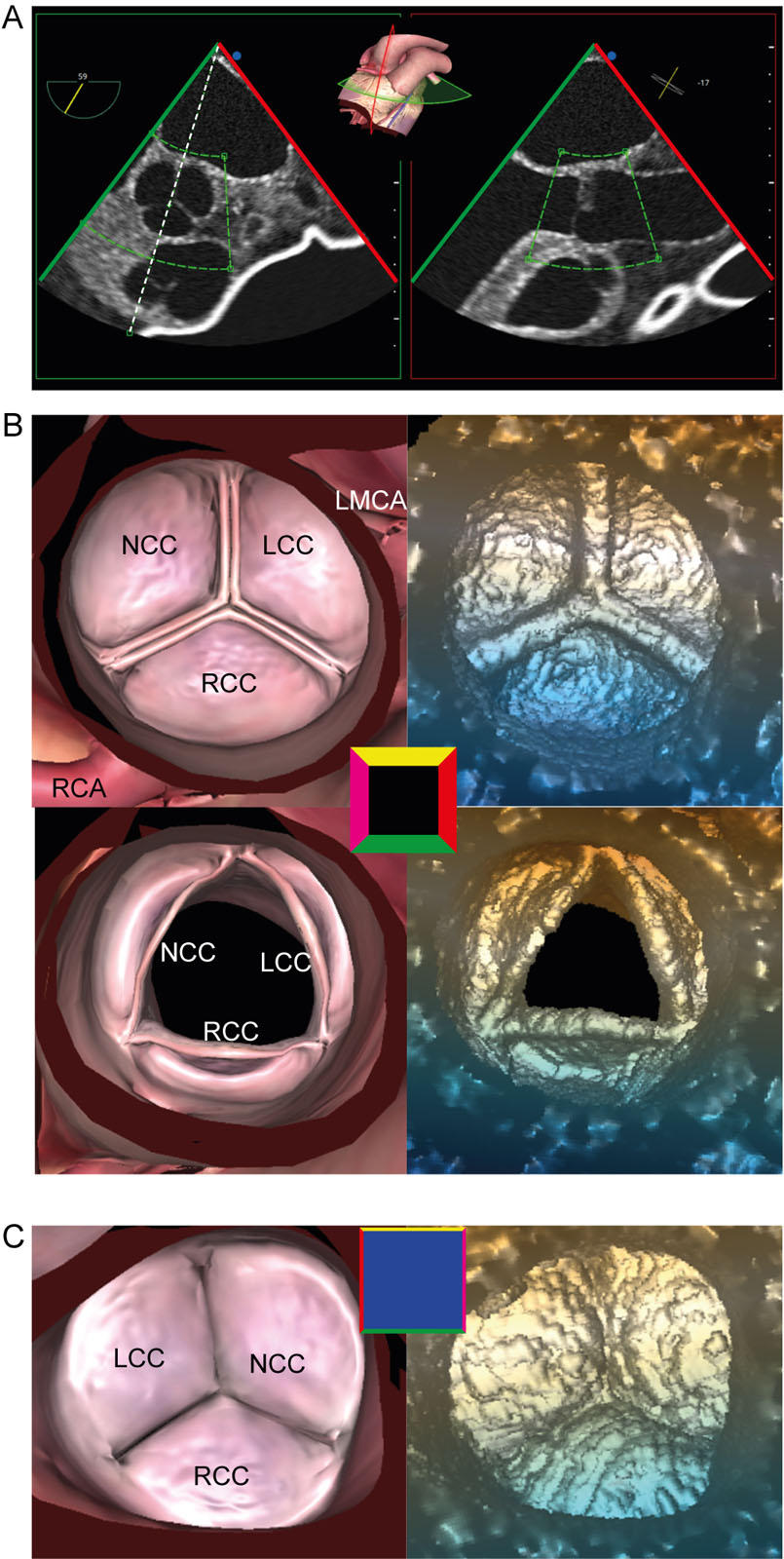

AoV 3D zoom acquisition. (A) 3D zoom acquisition beginning in the ME AoV SAX view should include all three AoV cusps and part of the LVOT and Asc Ao. (B) The 3D AoV dataset appears from the aortic perspective in diastole and systole. (C) A 180° rotation allows visualisation of the AoV from the LV perspective.<em> Abbreviations</em>: 3D, three-dimensional, AoV, aortic valve; Asc Ao, ascending aorta; LCC, left coronary cusp; LMCA, left main coronary artery; LV, left ventricular outflow tract; ME, mid-esophageal; NCC, non-coronary cusp; RCA, right coronary artery; RCC, right coronary cusp; SAX, short-axis. <i class='fa fa-video-camera' aria-hidden='true'></i>

eFigure 14.10

AoV 3D zoom acquisition. (A) 3D zoom acquisition beginning in the ME AoV SAX view should include all three AoV cusps and part of the LVOT and Asc Ao. (B) The 3D AoV dataset appears from the aortic perspective in diastole and systole. (C) A 180° rotation allows visualisation of the AoV from the LV perspective. Abbreviations: 3D, three-dimensional, AoV, aortic valve; Asc Ao, ascending aorta; LCC, left coronary cusp; LMCA, left main coronary artery; LV, left ventricular outflow tract; ME, mid-esophageal; NCC, non-coronary cusp; RCA, right coronary artery; RCC, right coronary cusp; SAX, short-axis.

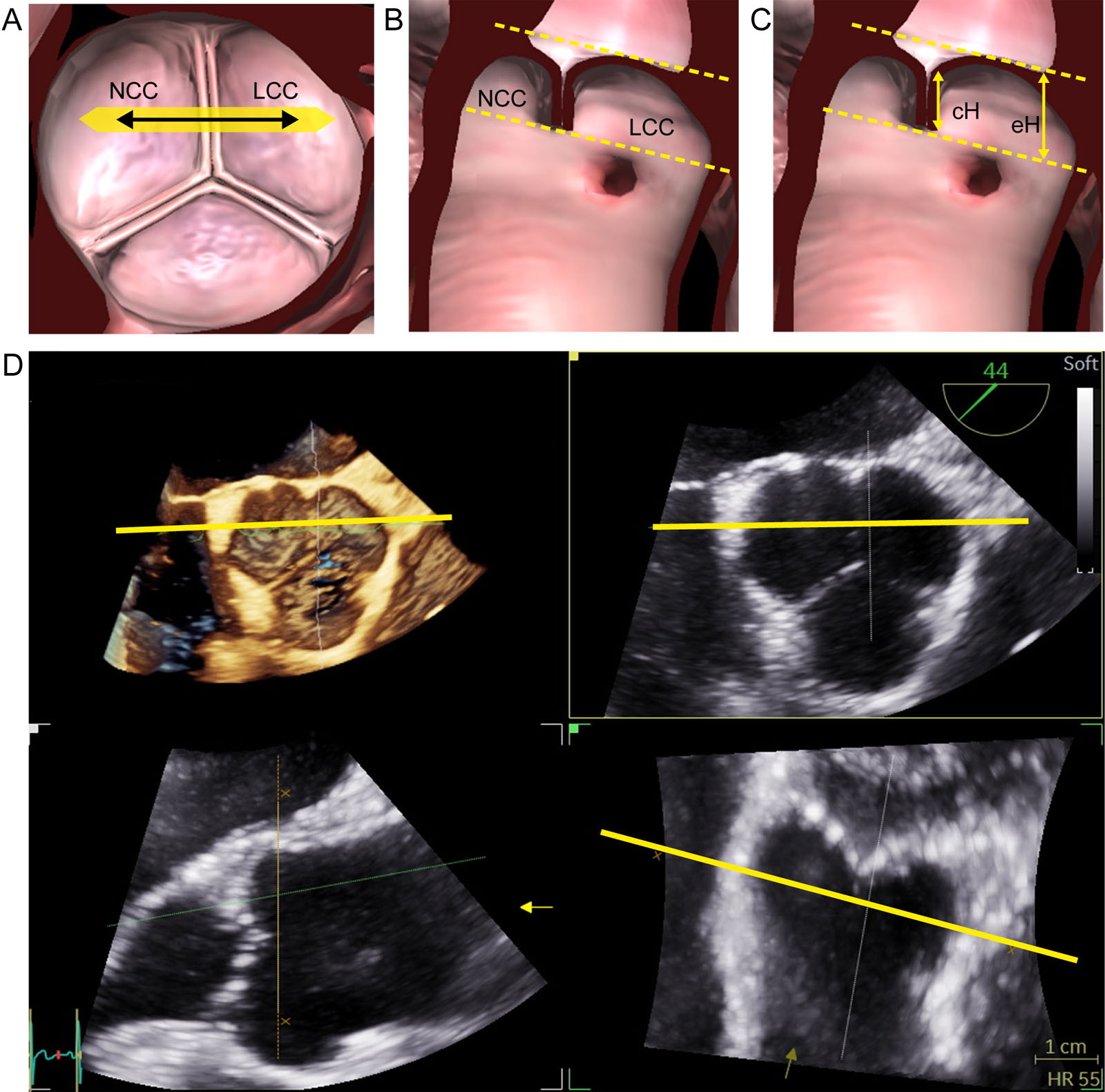

AoV eH and cH measurements of NCC and LCC. (A-C) Measurements are taken between the respective cusps of a normal tricuspid AoV at the inner third of each commissure in the correct adjusted sectional plane. The orthogonal sectional planes through the center of the AoV must be adjusted perpendicular to the commissures between 2 respective cusps. The cH and eH positions between the NCC and the LCC are shown. (D) Corresponding 3D ME SAX view of the AoV with MPR.<em> Abbreviations</em>: 3D, three-dimensional; AoV, aortic valve; cH, coaptation height; eH, effective height; LCC, left coronary cusp; ME, mid-esophageal; MPR, multiplane reconstruction; NCC, non-coronary cusp; SAX, short-axis. Adapted from Hagendorff et al. <sup>2</sup>

eFigure 14.14

AoV eH and cH measurements of NCC and LCC. (A-C) Measurements are taken between the respective cusps of a normal tricuspid AoV at the inner third of each commissure in the correct adjusted sectional plane. The orthogonal sectional planes through the center of the AoV must be adjusted perpendicular to the commissures between 2 respective cusps. The cH and eH positions between the NCC and the LCC are shown. (D) Corresponding 3D ME SAX view of the AoV with MPR. Abbreviations: 3D, three-dimensional; AoV, aortic valve; cH, coaptation height; eH, effective height; LCC, left coronary cusp; ME, mid-esophageal; MPR, multiplane reconstruction; NCC, non-coronary cusp; SAX, short-axis. Adapted from Hagendorff et al. 2

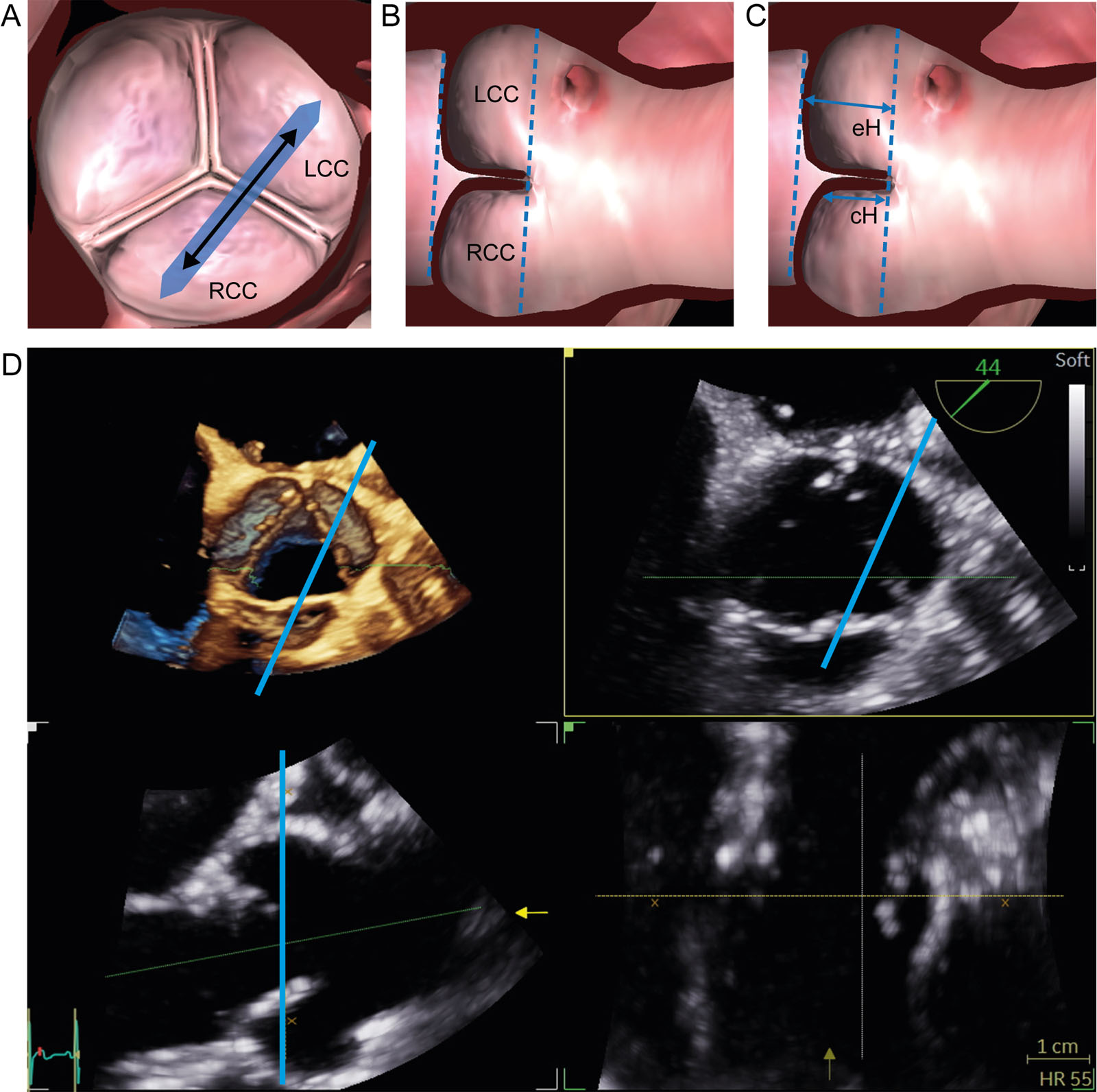

Aortic valve eH and cH measurements of NCC and RCC. (A-C) Measurements should be taken between the respective cusps of a normal tricuspid AoV at the inner third of each commissure in the correct adjusted sectional plane. The orthogonal sectional planes through the AoV center must be adjusted perpendicular to the commissures between 2 respective cusps. The cH and eH positions between the RCC and the LCC appear. (D) Corresponding 3D ME SAX view of the AoV with MPR.<em> Abbreviations</em>: 3D, three-dimensional; AoV, aortic valve; cH, coaptation height; eH, effective height; LCC, left coronary cusp; ME, mid-esophageal; MPR, multiplane reconstruction; RCC, right coronary cusp; SAX, short-axis. Adapted from Hagendorf et al. <sup>2</sup>

eFigure 14.15

Aortic valve eH and cH measurements of NCC and RCC. (A-C) Measurements should be taken between the respective cusps of a normal tricuspid AoV at the inner third of each commissure in the correct adjusted sectional plane. The orthogonal sectional planes through the AoV center must be adjusted perpendicular to the commissures between 2 respective cusps. The cH and eH positions between the RCC and the LCC appear. (D) Corresponding 3D ME SAX view of the AoV with MPR. Abbreviations: 3D, three-dimensional; AoV, aortic valve; cH, coaptation height; eH, effective height; LCC, left coronary cusp; ME, mid-esophageal; MPR, multiplane reconstruction; RCC, right coronary cusp; SAX, short-axis. Adapted from Hagendorf et al. 2

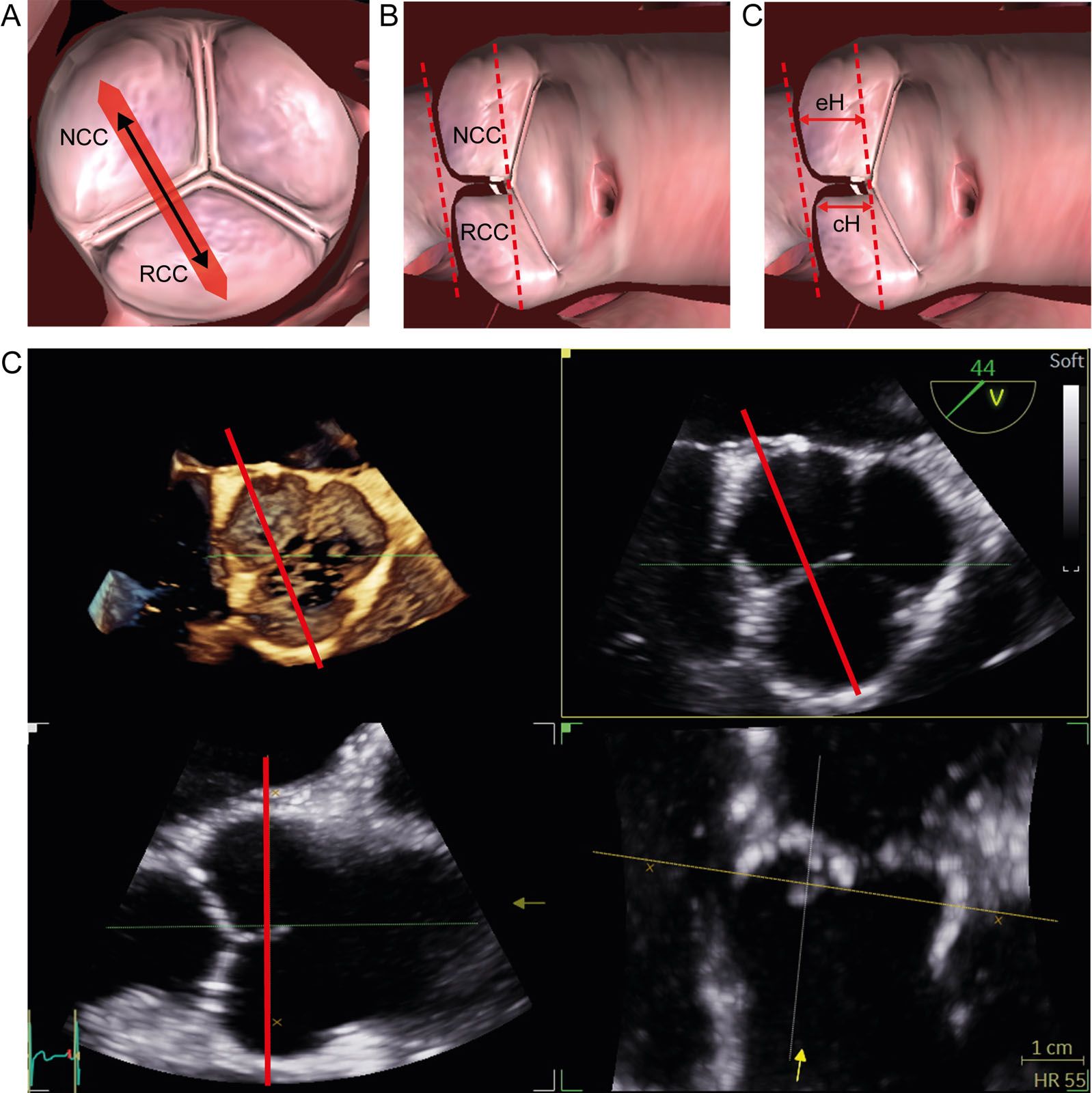

Figure 14.17 AoV eH and cH measurements of <strong>RCC</strong>and NCC. (A-C) Measurements should be taken between the respective cusps of a normal tricuspid AoV at the inner third of each commissure in the correct adjusted sectional plane. The orthogonal sectional planes through the AoV center must be adjusted perpendicular to the commissures between 2 respective cusps. The cH and eH positions between the NCC and the <strong>RCC</strong> appear. (D) Corresponding 3D ME SAX view of the AoV with MPR.<em> Abbreviations</em>: 3D, three-dimensional; AoV, aortic valve; cH, coaptation height; eH, effective height; ME, mid-esophageal; MPR, multiplane reconstruction; NCC, non-coronary cusp; RCC where, right coronary cusp; SAX, short-axis. Adapted from Hagendorff et al.<strong><sup>2</sup></strong> <i class='fa fa-video-camera' aria-hidden='true'></i>

eFigure 14.16

Figure 14.17 AoV eH and cH measurements of RCCand NCC. (A-C) Measurements should be taken between the respective cusps of a normal tricuspid AoV at the inner third of each commissure in the correct adjusted sectional plane. The orthogonal sectional planes through the AoV center must be adjusted perpendicular to the commissures between 2 respective cusps. The cH and eH positions between the NCC and the RCC appear. (D) Corresponding 3D ME SAX view of the AoV with MPR. Abbreviations: 3D, three-dimensional; AoV, aortic valve; cH, coaptation height; eH, effective height; ME, mid-esophageal; MPR, multiplane reconstruction; NCC, non-coronary cusp; RCC where, right coronary cusp; SAX, short-axis. Adapted from Hagendorff et al.2

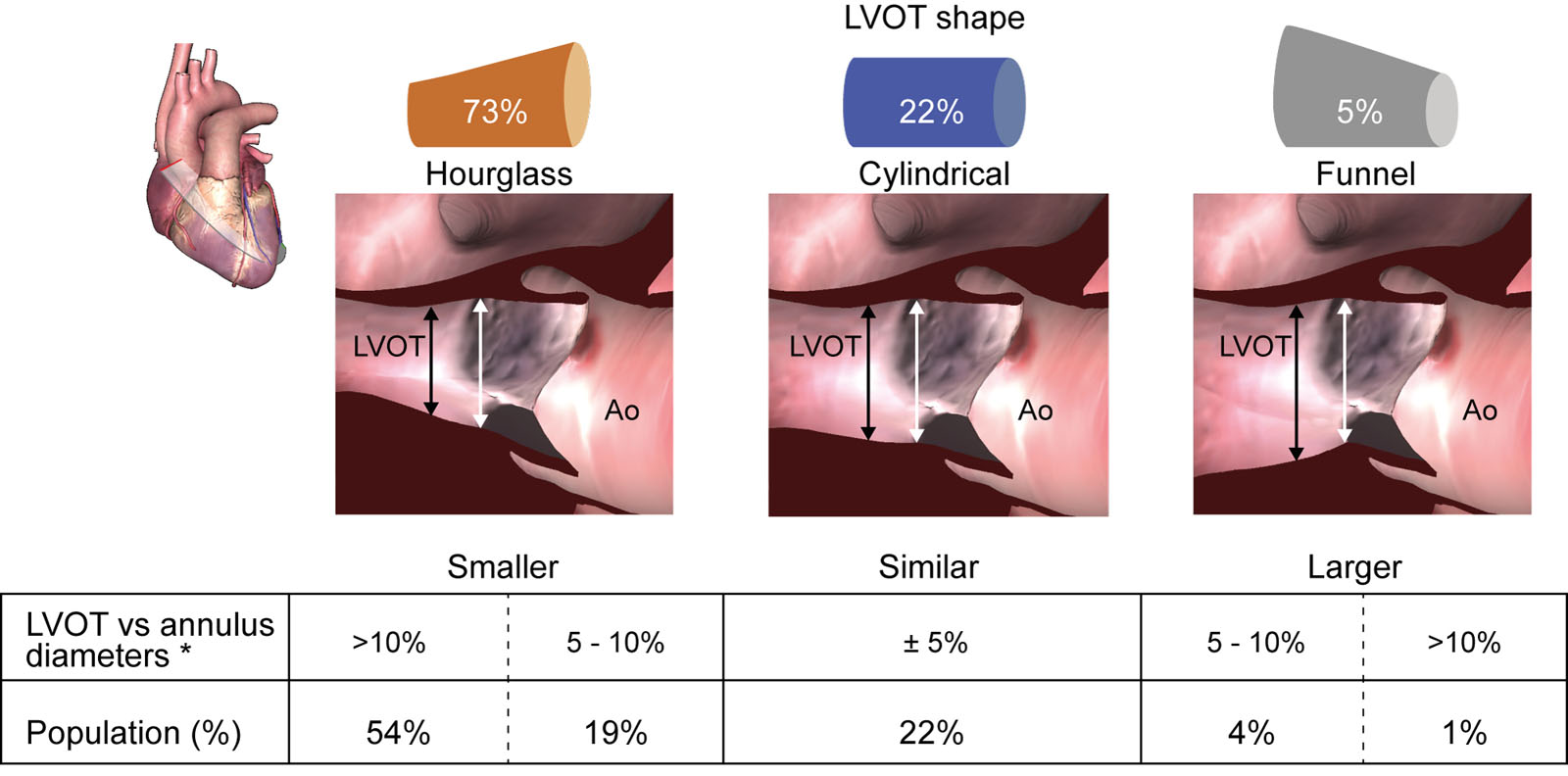

Prevalence of different LVOT shapes and their effect on SV estimation. This figure shows the prevalence of different LVOT shapes in our population along with examples (zoomed ME LAX echocardiographic images). *Bias examples: assuming a theoretical LVOT VTI of 20 cm and an AoV VTI of 80 cm, a 5% error in diameter (e.g., LVOT diameter of 20 mm corresponding to LVOT area 3.14 cm² vs LVOT diameter of 21mm and LVOT area 3.46 cm²) would yield a 10% error in SV (63 vs 69 mL) and AVA (0.79 vs 0.87 cm2). A 10% error in diameter (e.g., LVOT diameter of 20 mm corresponding to LVOT area 3.14 cm2 vs LVOT diameter of 22 mm and LVOT area of 3.80 cm2) would yield a 21% error in SV (63 vs 76 mL) and in AVA (0.79 vs 0.95 cm²).<em> Abbreviations</em>: Ao,aorta; AoV, aortic valve; AVA, aortic valve area; <s>d, diameter;</s> LAX, long-axis; LVOT, left ventricular outflow tract; ME, mid-esophageal; SV, stroke volume; VTI, velocity time integral. Adapted from Guzetti et al.<strong><sup>20</sup></strong>

eFigure 14.25

Prevalence of different LVOT shapes and their effect on SV estimation. This figure shows the prevalence of different LVOT shapes in our population along with examples (zoomed ME LAX echocardiographic images). *Bias examples: assuming a theoretical LVOT VTI of 20 cm and an AoV VTI of 80 cm, a 5% error in diameter (e.g., LVOT diameter of 20 mm corresponding to LVOT area 3.14 cm² vs LVOT diameter of 21mm and LVOT area 3.46 cm²) would yield a 10% error in SV (63 vs 69 mL) and AVA (0.79 vs 0.87 cm2). A 10% error in diameter (e.g., LVOT diameter of 20 mm corresponding to LVOT area 3.14 cm2 vs LVOT diameter of 22 mm and LVOT area of 3.80 cm2) would yield a 21% error in SV (63 vs 76 mL) and in AVA (0.79 vs 0.95 cm²). Abbreviations: Ao,aorta; AoV, aortic valve; AVA, aortic valve area; d, diameter; LAX, long-axis; LVOT, left ventricular outflow tract; ME, mid-esophageal; SV, stroke volume; VTI, velocity time integral. Adapted from Guzetti et al.20

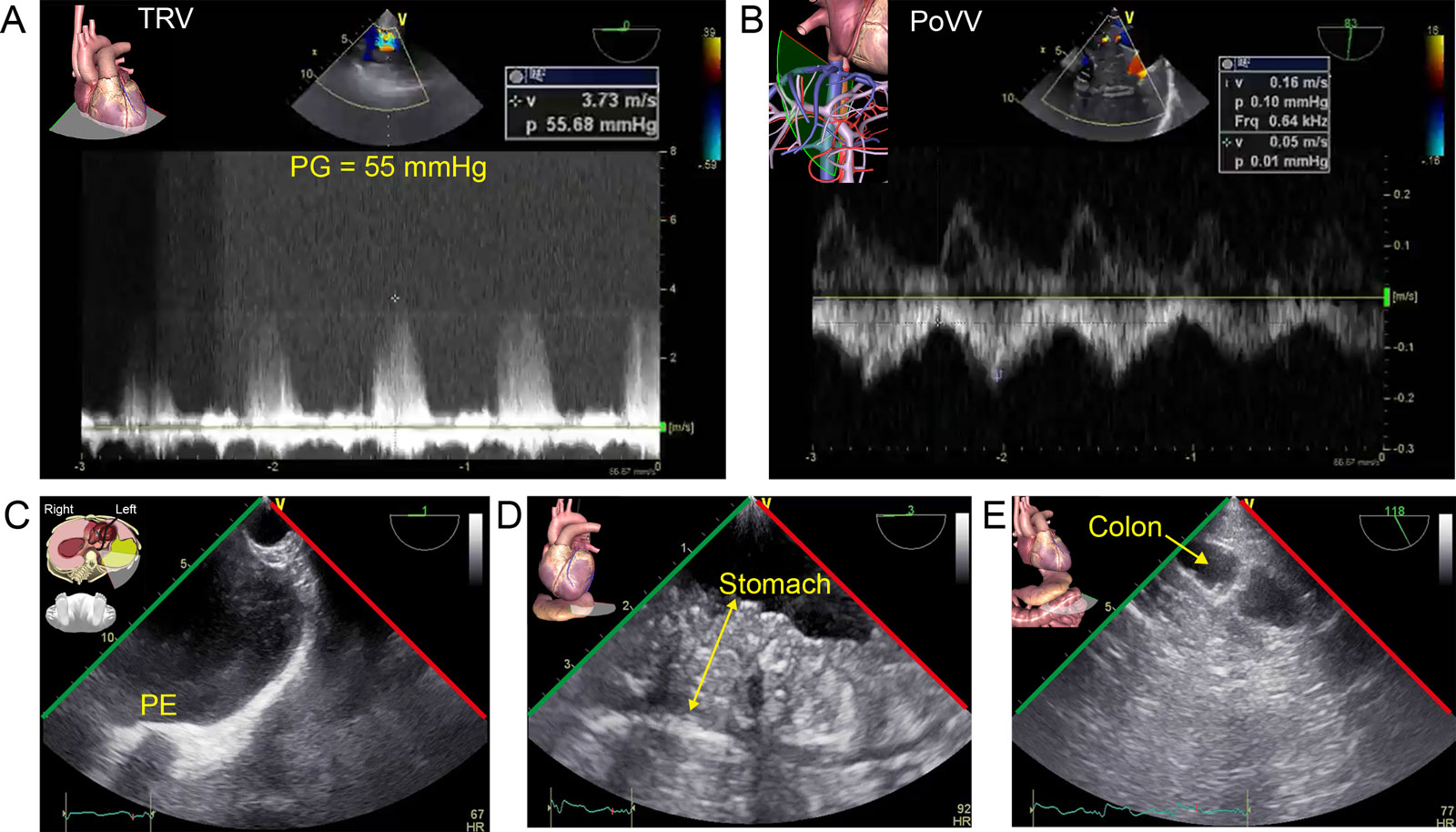

Extra-cardiac AoV stenosis complications. A 79-year-old man with AS presents for THV. (A) CWD interrogation of the TV from the ME RV 4C view shows a TRV peak PG of 55 mmHg. (B) This was associated with portal pulsatility in the PoVV signal. (C-E) TELUS shows a (C) left pleural effusion (PE), and TGAUS shows (D) significant stomach (double arrow) and (E) bowel edema with edema of the semi-lunar fold (arrow). These elements can lead to a cardio-intestinal syndrome.<sup>52</sup><em> Abbreviations</em>: 4C, four- chamber; AoV, aortic valve; CWD, continuous wave Doppler; ME, mid-esophageal; P, pressure; PG, pressure gradient; PoVV, portal vein velocity; RV, right ventricular; TGAUS, transgastric abdominal ultrasound; TELUS, transesophageal lung ultrasound; THV, transcatheter heart valve; TRV, tricuspid regurgitation velocity; TV, tricuspid valve; V, velocity; VV, venous velocity. <i class='fa fa-video-camera' aria-hidden='true'></i>

eFigure 14.30

Extra-cardiac AoV stenosis complications. A 79-year-old man with AS presents for THV. (A) CWD interrogation of the TV from the ME RV 4C view shows a TRV peak PG of 55 mmHg. (B) This was associated with portal pulsatility in the PoVV signal. (C-E) TELUS shows a (C) left pleural effusion (PE), and TGAUS shows (D) significant stomach (double arrow) and (E) bowel edema with edema of the semi-lunar fold (arrow). These elements can lead to a cardio-intestinal syndrome.52 Abbreviations: 4C, four- chamber; AoV, aortic valve; CWD, continuous wave Doppler; ME, mid-esophageal; P, pressure; PG, pressure gradient; PoVV, portal vein velocity; RV, right ventricular; TGAUS, transgastric abdominal ultrasound; TELUS, transesophageal lung ultrasound; THV, transcatheter heart valve; TRV, tricuspid regurgitation velocity; TV, tricuspid valve; V, velocity; VV, venous velocity.

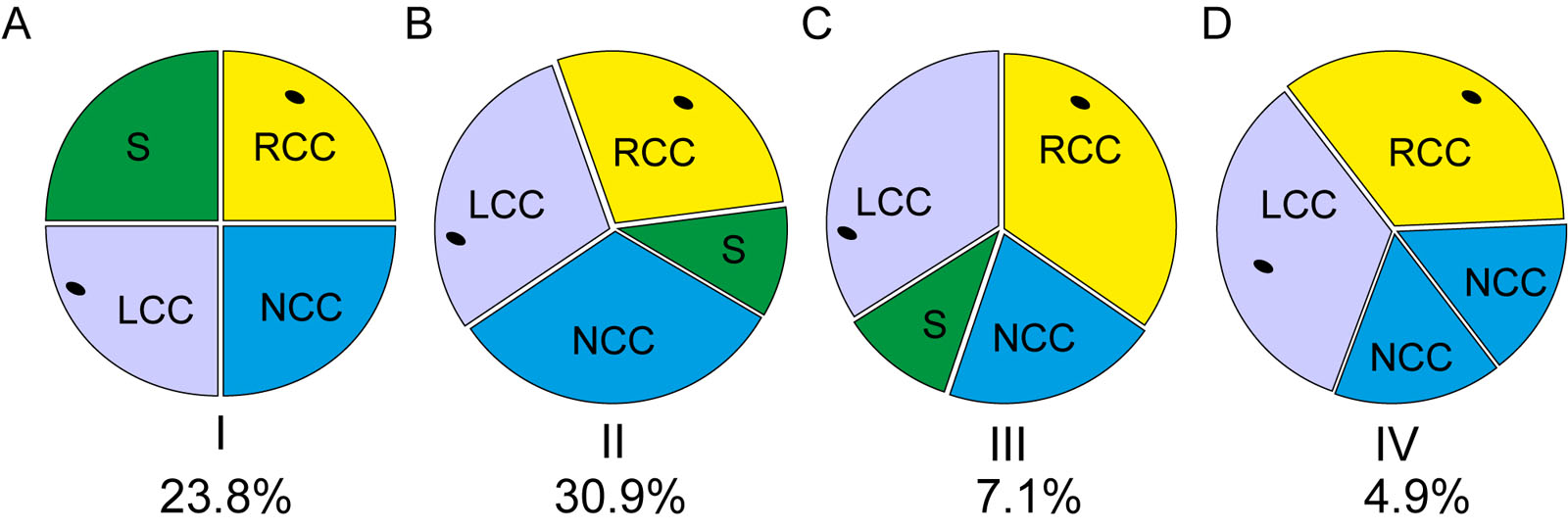

Quadricuspid AoV classification. There are different anatomic classifications that describe the quadricuspid AoV<sup>54</sup> including the simplified classification by Nakamura.<em> Abbreviations</em>: AoV, aortic valve; LCC, left coronary cusp; NCC, non-coronary cusp; RCC, right coronary cusp; S, supernumerary cusp. Adapted from Nakamura et al.<strong><sup>31</sup></strong>

eFigure 14.40

Quadricuspid AoV classification. There are different anatomic classifications that describe the quadricuspid AoV54 including the simplified classification by Nakamura. Abbreviations: AoV, aortic valve; LCC, left coronary cusp; NCC, non-coronary cusp; RCC, right coronary cusp; S, supernumerary cusp. Adapted from Nakamura et al.31

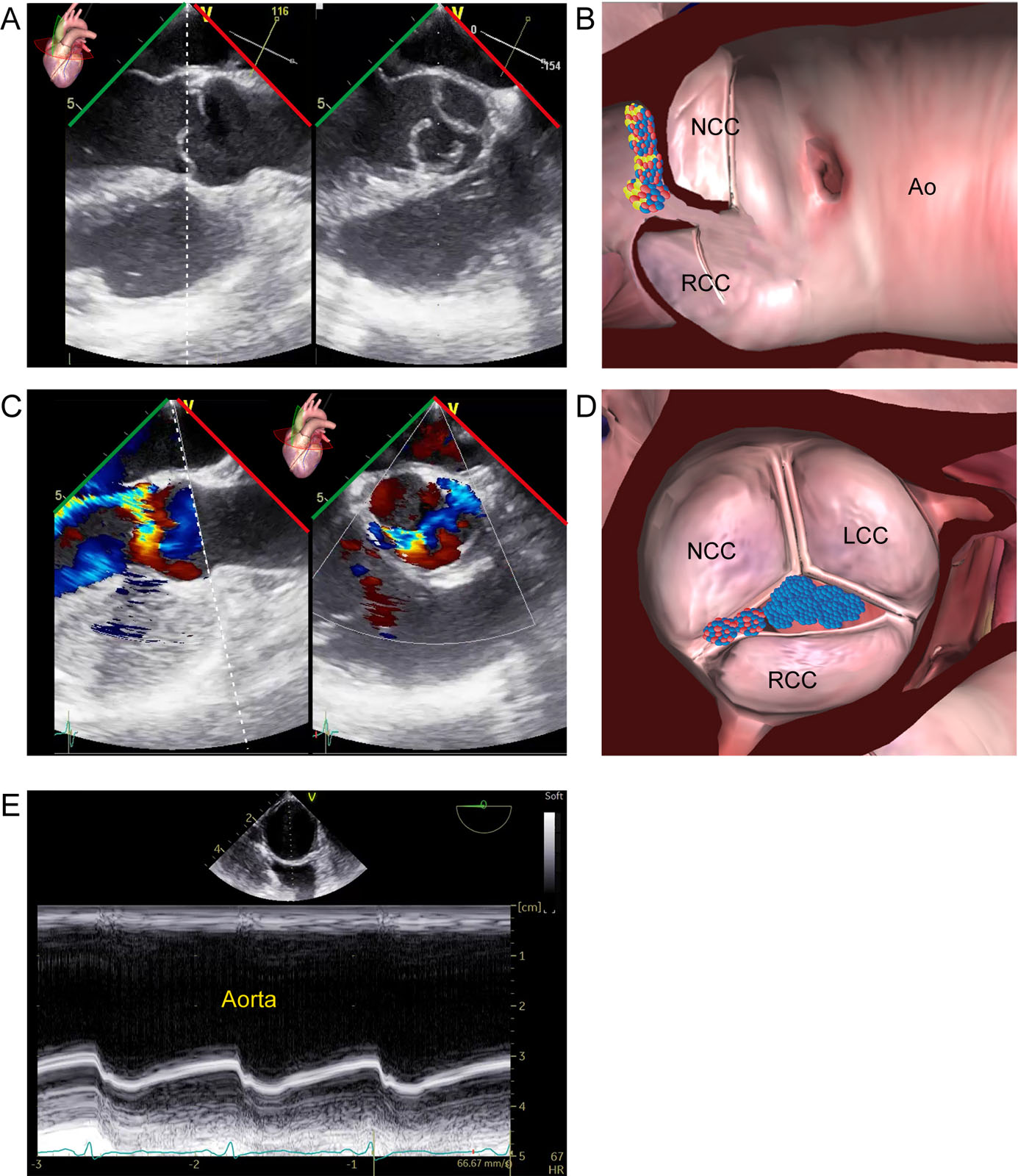

Type II AR. This is an example of AoV RCC prolapse. (A-D) The ME biplane AoV LAX and SAX views with CFI show a RCC partial prolapse with (C, D) a posterior directed AR jet. (E) M-mode of the descending Ao shows increased Ao wall pulsatility (Corrigan pulse).<em> Abbreviations</em>: Ao, aorta; AoV, aortic valve; AR, aortic regurgitation; CFI, color flow imaging; LAX, long-axis; LCC, left coronary cusp; ME, mid-esophageal; NCC, non-coronary cusp; RCC, right coronary cusp; SAX, short-axis.<i class='fa fa-video-camera' aria-hidden='true'></i>

eFigure 14.45

Type II AR. This is an example of AoV RCC prolapse. (A-D) The ME biplane AoV LAX and SAX views with CFI show a RCC partial prolapse with (C, D) a posterior directed AR jet. (E) M-mode of the descending Ao shows increased Ao wall pulsatility (Corrigan pulse). Abbreviations: Ao, aorta; AoV, aortic valve; AR, aortic regurgitation; CFI, color flow imaging; LAX, long-axis; LCC, left coronary cusp; ME, mid-esophageal; NCC, non-coronary cusp; RCC, right coronary cusp; SAX, short-axis.

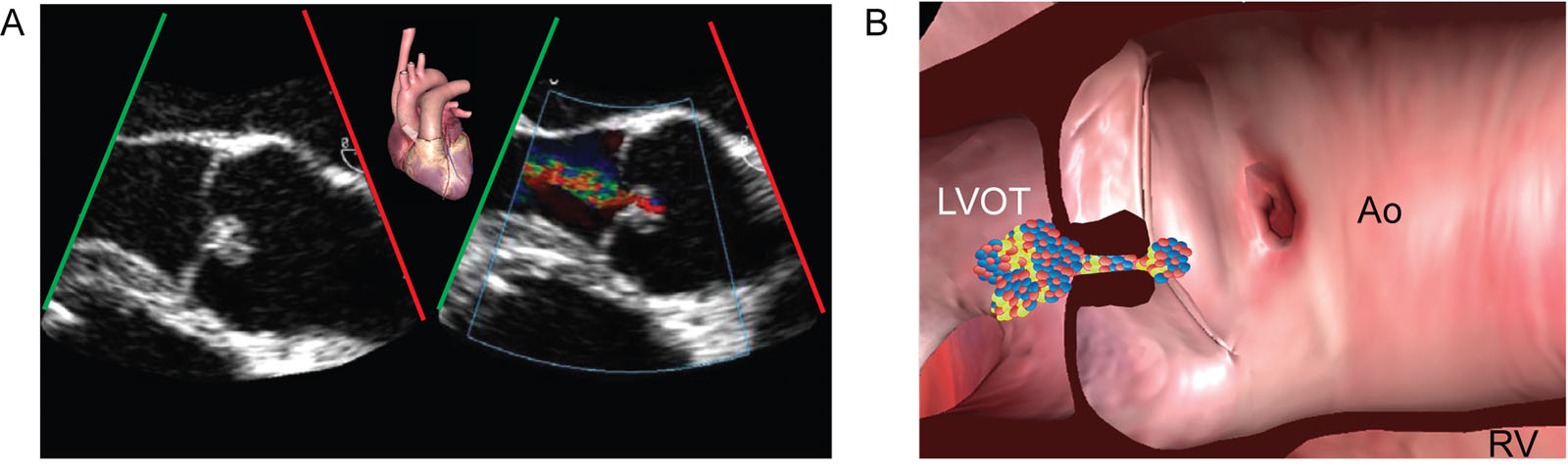

Type III AR. (A, B) The ME AoV LAX view shows thickened cusps that are more echogenic without calcification. There is moderate central AR.<em> Abbreviations</em>: Ao, aorta; AoV, aortic valve; AR, aortic regurgitation; LAX, long-axis; LVOT, left ventricular outflow tract; ME, mid-esophageal; RV, right ventricle. <i class='fa fa-video-camera' aria-hidden='true'></i>

eFigure 14.47

Type III AR. (A, B) The ME AoV LAX view shows thickened cusps that are more echogenic without calcification. There is moderate central AR. Abbreviations: Ao, aorta; AoV, aortic valve; AR, aortic regurgitation; LAX, long-axis; LVOT, left ventricular outflow tract; ME, mid-esophageal; RV, right ventricle.

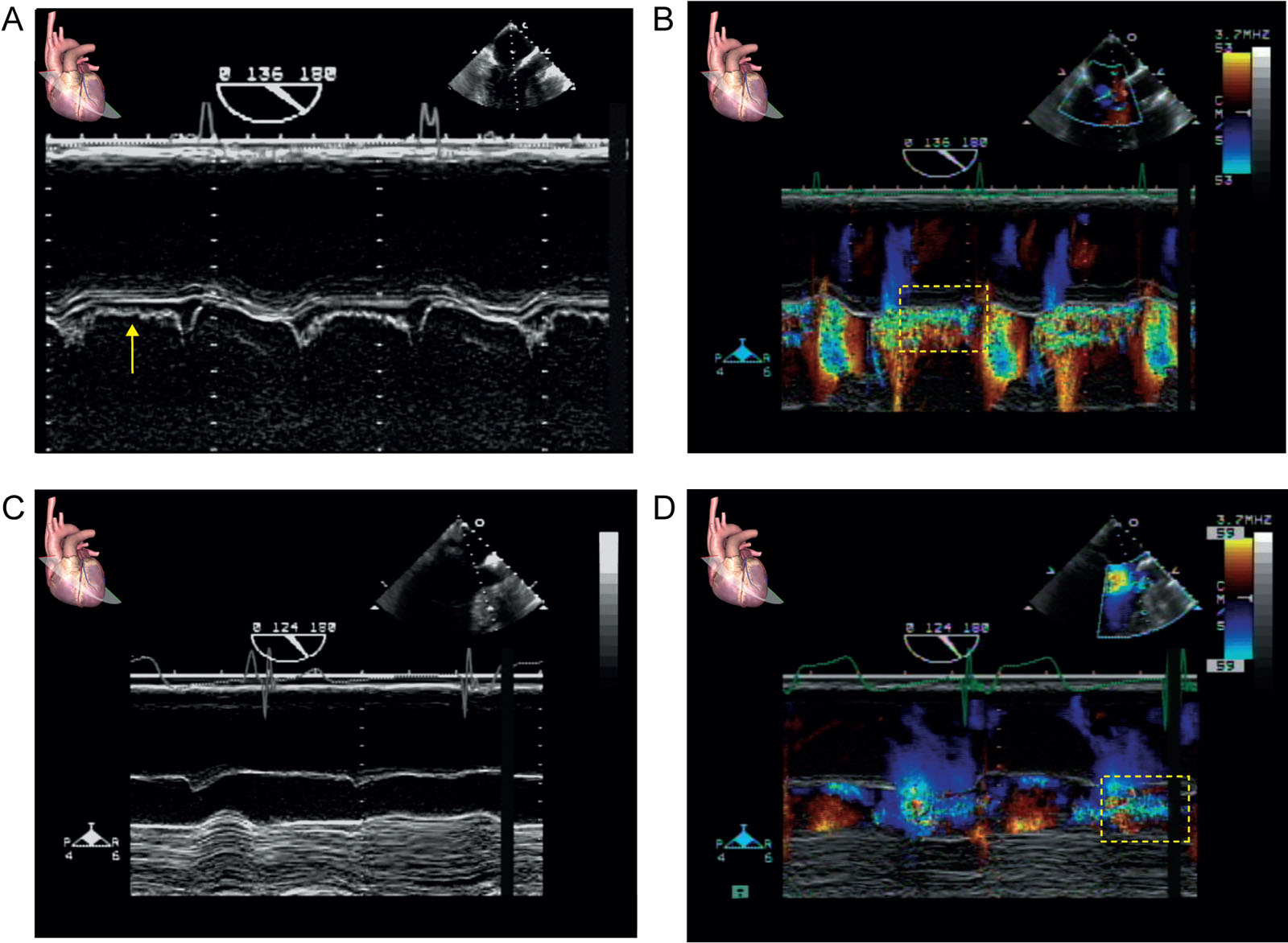

MV fluttering from AR. This is a 56-year-old man with severe AR and AMVL fluttering. M-mode and color M-mode through the AMVL from a ME AoV LAX view (A, B) before and (C, D) after AVR. Note the disappearance of the AMVL fluttering (A, arrow) after intervention. The color M-mode shows significant AR before (box) and (D) trivial AR (box) after AVR.<em> Abbreviations</em>: AMVL, anterior mitral valve leaflet; AoV, aortic valve; AR, aortic regurgitation; AVR, aortic valve replacement; LAX, long-axis; ME, mid-esophageal; MV, mitral valve.

eFigure 14.49

MV fluttering from AR. This is a 56-year-old man with severe AR and AMVL fluttering. M-mode and color M-mode through the AMVL from a ME AoV LAX view (A, B) before and (C, D) after AVR. Note the disappearance of the AMVL fluttering (A, arrow) after intervention. The color M-mode shows significant AR before (box) and (D) trivial AR (box) after AVR. Abbreviations: AMVL, anterior mitral valve leaflet; AoV, aortic valve; AR, aortic regurgitation; AVR, aortic valve replacement; LAX, long-axis; ME, mid-esophageal; MV, mitral valve.

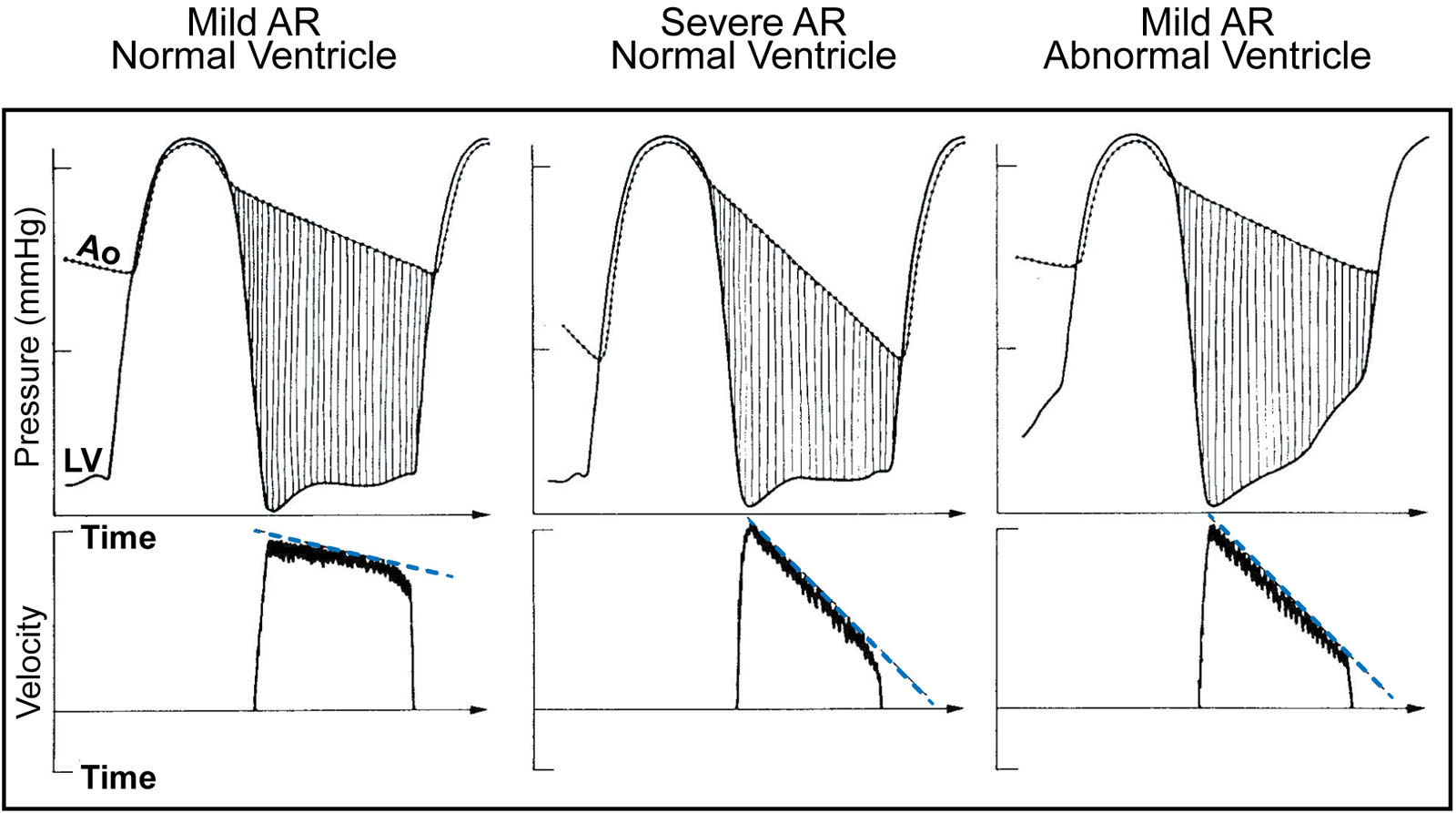

Pressure half-time. This diagram shows the determinants of regurgitant PHT in AR. The upper panels are invasive Ao and LV pressure tracings, the lower panels are CWD tracings across the AoV during diastole. The slope of the blood flow velocity corresponds to the fall in the measured PG between the Ao and LV. Calculation of PHT with Doppler echocardiography derives from the rate of decrease in blood flow velocity across the AoV in patients with AR.<em> Abbreviations</em>: Ao, aorta; AoV, aortic valve; AR, aortic regurgitation; CWD, continuous wave Doppler; LV, left ventricle; PG, pressure gradient; PHT, pressure half-time. Source: Reproduced with permission from Obeid et al.<strong><sup>55</sup></strong>

eFigure 14.55

Pressure half-time. This diagram shows the determinants of regurgitant PHT in AR. The upper panels are invasive Ao and LV pressure tracings, the lower panels are CWD tracings across the AoV during diastole. The slope of the blood flow velocity corresponds to the fall in the measured PG between the Ao and LV. Calculation of PHT with Doppler echocardiography derives from the rate of decrease in blood flow velocity across the AoV in patients with AR. Abbreviations: Ao, aorta; AoV, aortic valve; AR, aortic regurgitation; CWD, continuous wave Doppler; LV, left ventricle; PG, pressure gradient; PHT, pressure half-time. Source: Reproduced with permission from Obeid et al.55

2

Videos

Chapter 14 Fig01C

Chapter 14 Fig02EF

Chapter 14 Fig03

Chapter 14 Fig04A

Chapter 14 Fig04C

Chapter 14 Fig04E

Chapter 14 Fig06A

Chapter 14 Fig06C

Chapter 14 Fig08A

Chapter 14 Fig10B

Chapter 14 Fig12AC

Chapter 14 Fig14D

Chapter 14 Fig15D

Chapter 14 Fig16D

Chapter 14 Fig17AC

Chapter 14 Fig17E

Chapter 14 Fig18A

Chapter 14 Fig18D

Chapter 14 Fig19A

Chapter 14 Fig19C

Chapter 14 Fig20A

Chapter 14 Fig20C

Chapter 14 Fig21A

Chapter 14 Fig21D

Chapter 14 Fig26

Chapter 14 Fig29A

Chapter 14 Fig30C

Chapter 14 Fig30D

Chapter 14 Fig30E

Chapter 14 Fig33A

Chapter 14 Fig33C

Chapter 14 Fig33F

Chapter 14 Fig34A

Chapter 14 Fig34E

Chapter 14 Fig34F

Chapter 14 Fig35A

Chapter 14 Fig35BE

Chapter 14 Fig35D

Chapter 14 Fig35GH

Chapter 14 Fig36D

Chapter 14 Fig36E

Chapter 14 Fig37AD

Chapter 14 Fig37CF

Chapter 14 Fig38A

Chapter 14 Fig38D

Chapter 14 Fig38F

Chapter 14 Fig39A

Chapter 14 Fig39B

Chapter 14 Fig42A

Chapter 14 Fig43A

Chapter 14 Fig43C

Chapter 14 Fig43E

Chapter 14 Fig43F

Chapter 14 Fig44A

Chapter 14 Fig44C

Chapter 14 Fig44EF

Chapter 14 Fig45A

Chapter 14 Fig45C

Chapter 14 Fig45E

Chapter 14 Fig46A

Chapter 14 Fig46C

Chapter 14 Fig47A

Chapter 14 Fig48A

Chapter 14 Fig48C

Chapter 14 Fig50

Chapter 14 Fig52A

Chapter 14 Fig53A

Chapter 14 Fig53B

3

Tables

eTable 14.1 TEE major views for assessing the AoV

Standard TEE View

View-Angle-Technique

Utility

Disadvantages

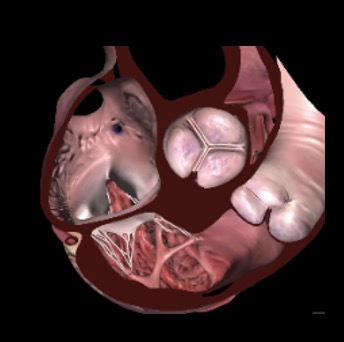

ME 5C view
Angle: 0-10°
(See Figure 4.6)

RCC and NCC
Qualitative assess AR with CFI

Alignment not optimal with PWD or CWD

A

ME AoV SAX
Angle: 25-45°
Symmetric cusps
Maximize LA size for 3D
(See Figure 4.34)

Easily acquired view
Cusp assessment
CFI for turbulence and regurgitation

B

ME AoV LAX Angle: 120-140°
(See Figure 4.13)

Good alignment for aortic annular
and supravalvular diameter measure

Non-circular plane may underestimate AoV annulus diameter

C

TG LAX
Angle: 120-140°
(See Figure 4.22)

Can measure PG across AoV

Alignment not always best with PWD or CWD

D

Deep TG 5C
Angle: 0-20°
(See Figure 4.24)

Best view to measure AoV PG
using CFI, PWD and CWD

.

E

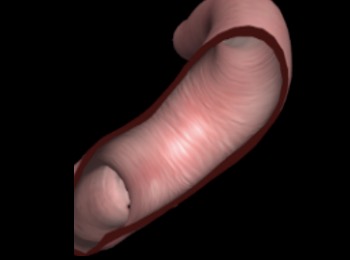

UE Aortic arch LAX
Angle: 0-10°
(See Figure 4.26)

Useful view to assess AR severity using PWD



F

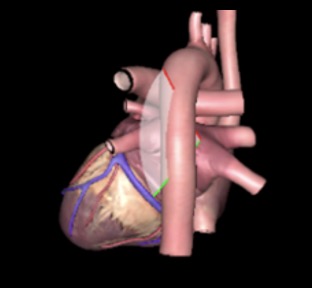

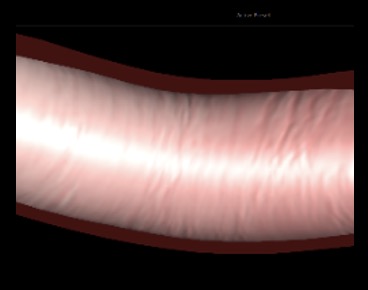

Descending aorta LAX
Angle: 90-100°
(See Figure 4.25)

Parallel alignment can be sub-optimal

Abbreviations: 3D, three-dimensional; 5C, five-chamber; AoV, aortic valve; AR, aortic regurgitation; CFI, color flow imaging; CWD, continuous wave Doppler; LA, left atrium; LAX, long-axis; ME, mid-esophageal; NCC, non-coronary cusp; PG, pressure gradient; PWD, pulsed wave Doppler; RCC, right coronary cusp; SAX, short-axis; TEE, transesophageal echocardiography; TG, transgastric; UE, upper esophageal. Adapted from Hahn et al.48

eTable 14.4 Qualitative and quantitative parameters useful in grading AR severity

 MildModerateModerate to severeSevere
Structural and qualitative parameters
LV size aNormalNormal or dilatedUsually dilatedUsually dilated
Aortic leafletsNormal or abnormalNormal or abnormalAbnormal: prolapse, moderate coaptation defectAbnormal: flail, wide coaptation defect
CFI AR jet width bSmall in central jetsIntermediateLarge: central jet Variable: eccentric jetsLarge: central jet Variable: eccentric jets
CFI convergence bNone or smallIntermediateIntermediateLarge
PWD flow reversal descending aorta cProto-diastolicIntermediateHolodiastolic EDV 10-19 cm/sHolodiastolic EDV ≥ 20 cm/s
CWD AR jet densityIncomplete, faintDenseDenseDense
Semi-quantitative parameters
VC width (mm) d<33–63–6>6
Jet width/LVOT diameter (%) b<2525–4546–64>65
Jet CSA/LVOT CSA (%) b<55–2021–59>60
CWD PHT (ms) c >500Intermediate 200-500Intermediate 200-500Steep <200
Quantitative parameters
EROAR (cm²) d<0.100.10–0.190.20–0.29>0.30
RVol (ml)<3030–4445–59>60
RF (%)<3030–3940–49>50
Other modalities
CMR RF (%)<3030–3940–49>50
a Non-significant LV enlargement includes LVEDD < 56mm, LVEDV < 82ml/m², LVESD < 40 mm and LVESV < 30ml/m² b At a Nyquist limit of 50 to 70 cm/s c LV and aortic compliance influence this parameter (See Table 14.5) particularly in the elderly. These parameters are also influenced by chronotropy d 3D echocardiography can evaluate AR mechanism and quantify VC 50, 51, 32 Abbreviations: 3D, three-dimensional; AR, aortic regurgitation; CFI, color flow imaging; CMR, cardiac magnetic resonance; CSA, cross-sectional area; CWD, continuous wave Doppler; EDV, end-diastolic velocity; EROAR, AR effective regurgitant orifice area; LV, left ventricle; LVEDD, left ventricular end-diastolic dimension; LVEDV, left ventricular end-diastolic volume; LVESD, left ventricular end-systolic dimension; LVESV, left ventricular end-systolic volume; LVOT, left ventricular outflow tract; PHT, pressure half-time; PWD, pulsed wave Doppler; RF, regurgitant fraction; RVol, regurgitant volume; VC, vena contracta. Adapted from Zoghbi et al32 and Lancelotti et al.34
