Figures
eFigure 25.22

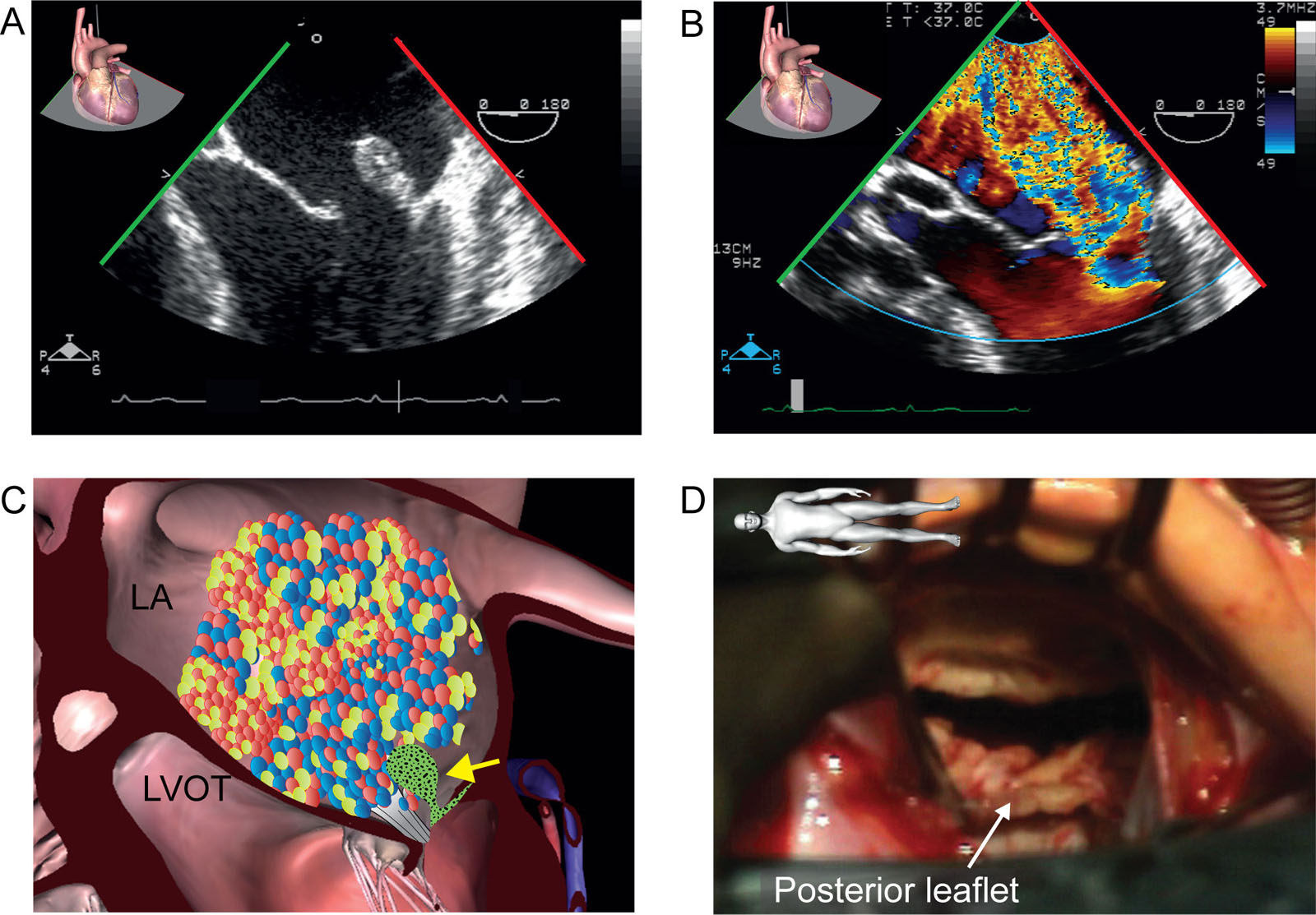

MV endocarditis. This is a 57-year-old man with PMVL endocarditis. (A-D) ME 4C views without and with CFI revealed (A) a vegetation with an associated flail PMVL (P1) scallop and (B) severe MR. (E) Intraoperative photo confirms P1 flail. The patient underwent MV replacement. Abbreviations: 4C, four-chamber; CFI, color flow imaging; LA, left atrium; LVOT, left ventricular outflow tract; ME, mid-esophageal; MR, mitral regurgitation; MV, mitral valve; PMVL, posterior mitral valve leaflet. Photo E courtesy of Dr. Michel Carrier.
eFigure 25.23

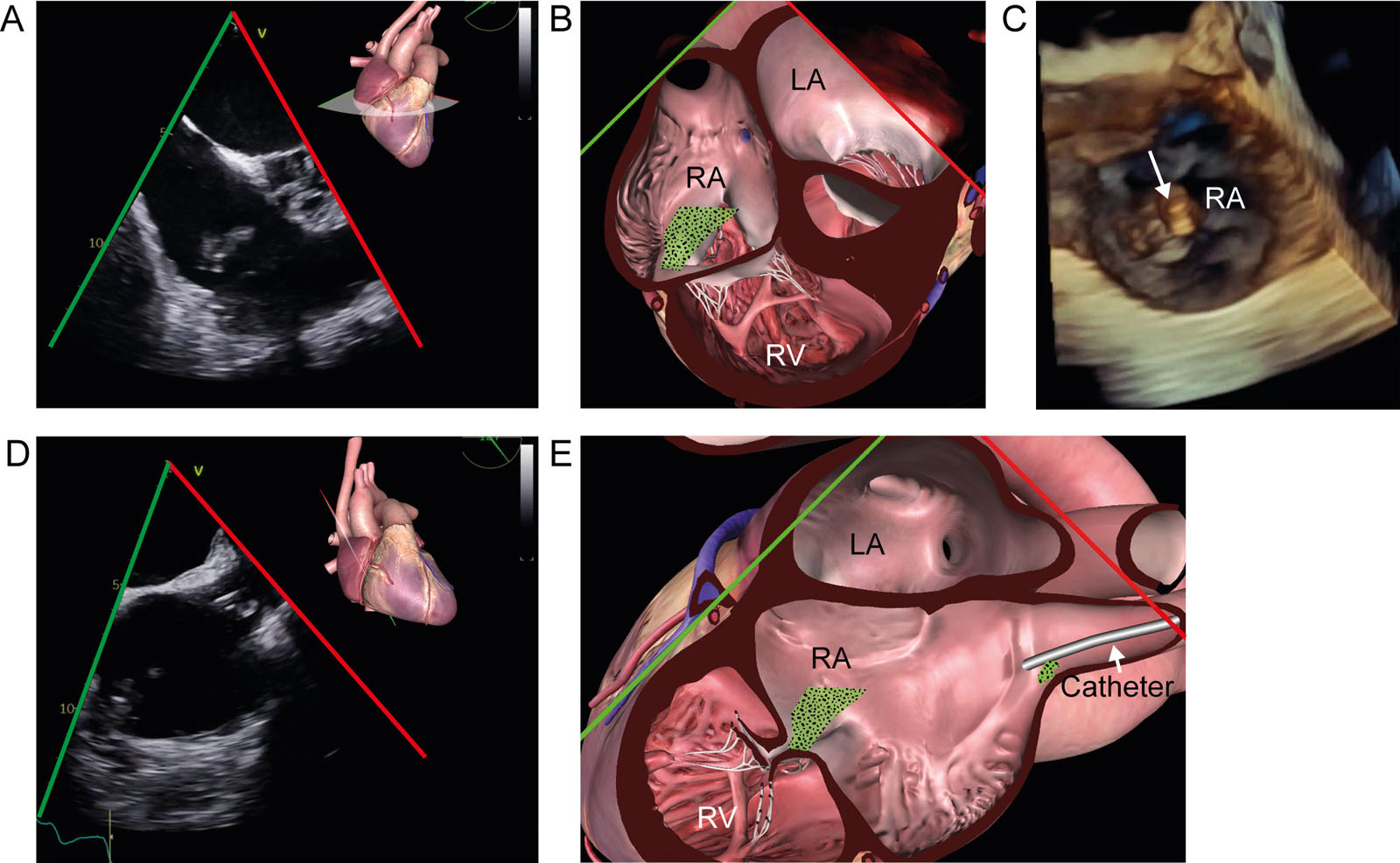

TV endocarditis. (A, B) ME RV-focused view at 35°shows multiple masses attached to the posterior TV leaflet in a bacteremic patient. (C) The 3D dataset from the RA perspective confirms the lesions’ location on the posterior leaflet (arrow). (D, E) The ME 2C RV view also shows a vegetation attached to an SVC catheter. Abbreviations: 2C, two-chamber; 3D, three-dimensional; LA, left atrium; ME, mid-esophageal; RA, right atrium; RV, right ventricle; SVC, superior vena cava; TV, tricuspid valve.
eFigure 25.24

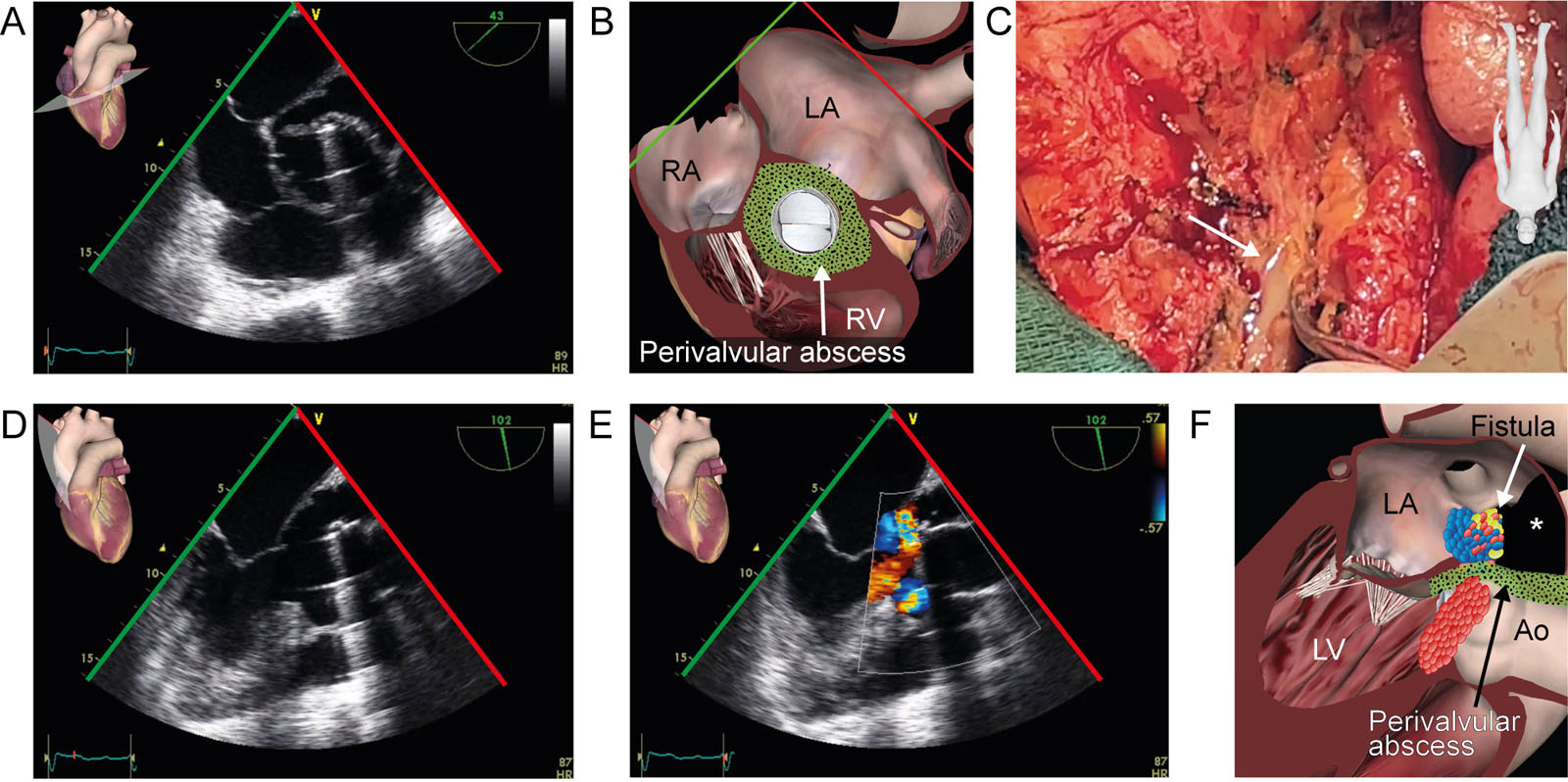

Aortic root pseudoaneurysm. This is a patient post Bentall procedure with composite valve-graft dehiscence. (A, B) ME AoV SAX view at 43° shows a large pseudoaneurysm and a mobile vegetation attached to the aortic composite valve-graft prosthesis. (C) Presence of pericardial effusion. Pus was present upon pericardial opening in this intraoperative photo. (D-F) ME LAX view with CFI shows color directed into the pseudoaneurysm (see *) and through the mechanical composite valve-graft prosthesis in systole. Abbreviations: Ao, aorta; AoV, aortic valve; CFI, color flow imaging; LA, left atrium; LAX, long-axis; LV, left ventricle; ME, mid-esophageal; RA, right atrium; RV, right ventricle; SAX, short-axis.
eFigure 25.25

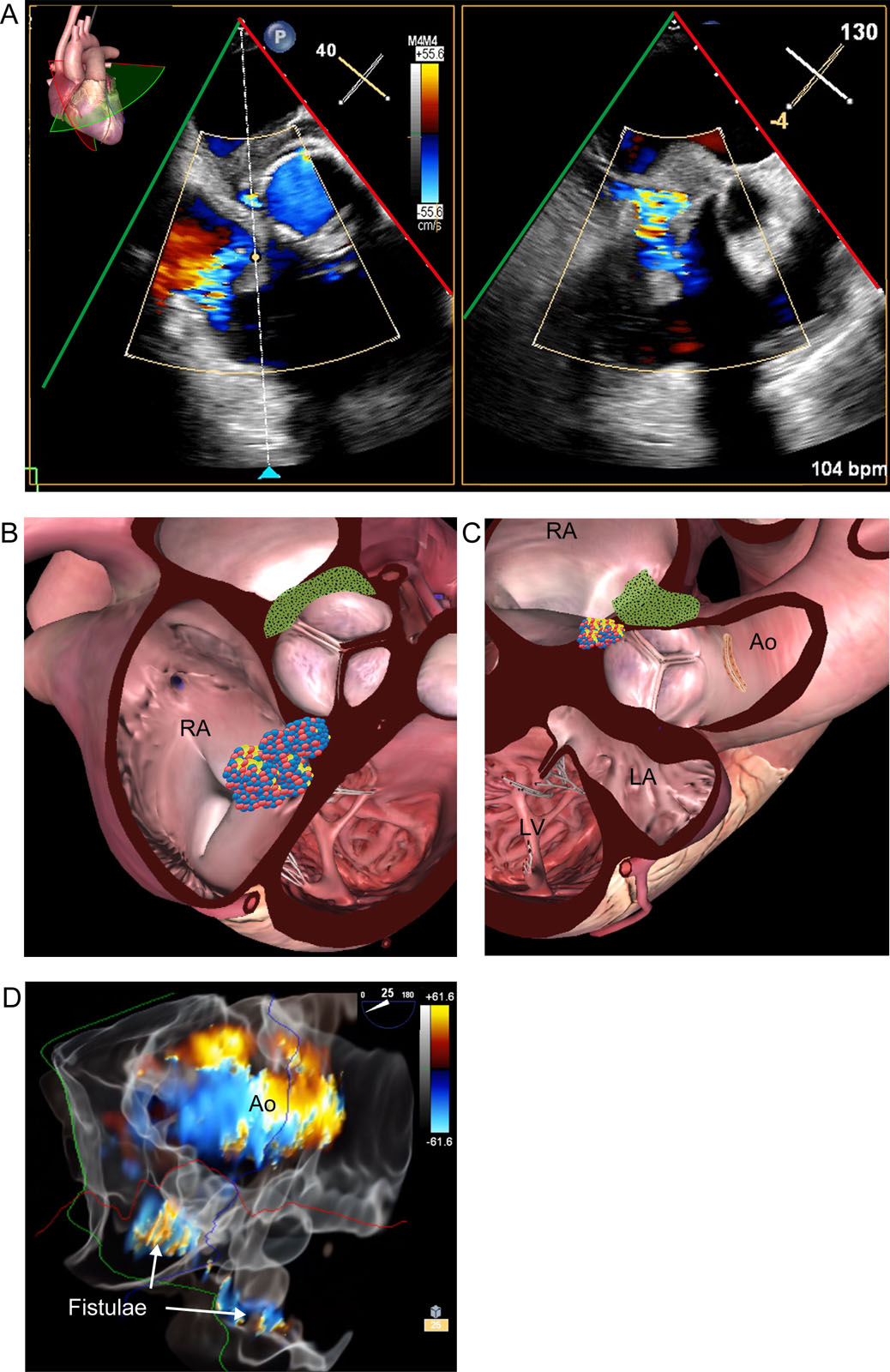

Endocarditis fistula. This is a 65-year-old man with a previous Yacoub procedure. (A-B) Biplane ME RV inflow-outflow view with CFI in diastole shows turbulent flow from the aorta to RA consistent with an aorto-RA fistula. (C) 3D glass view with CFI of the AoV in SAX from the aortic perspective shows the fistula adjacent to the AoV. Abbreviations: 3D, three-dimensional; Ao, aorta; AoV, aortic valve; CFI, color flow imaging; LA, left atrium; LV, left ventricle; ME, mid-esophageal; RA, right atrium; RV, right ventricle; SAX, short-axis.
eFigure 25.26

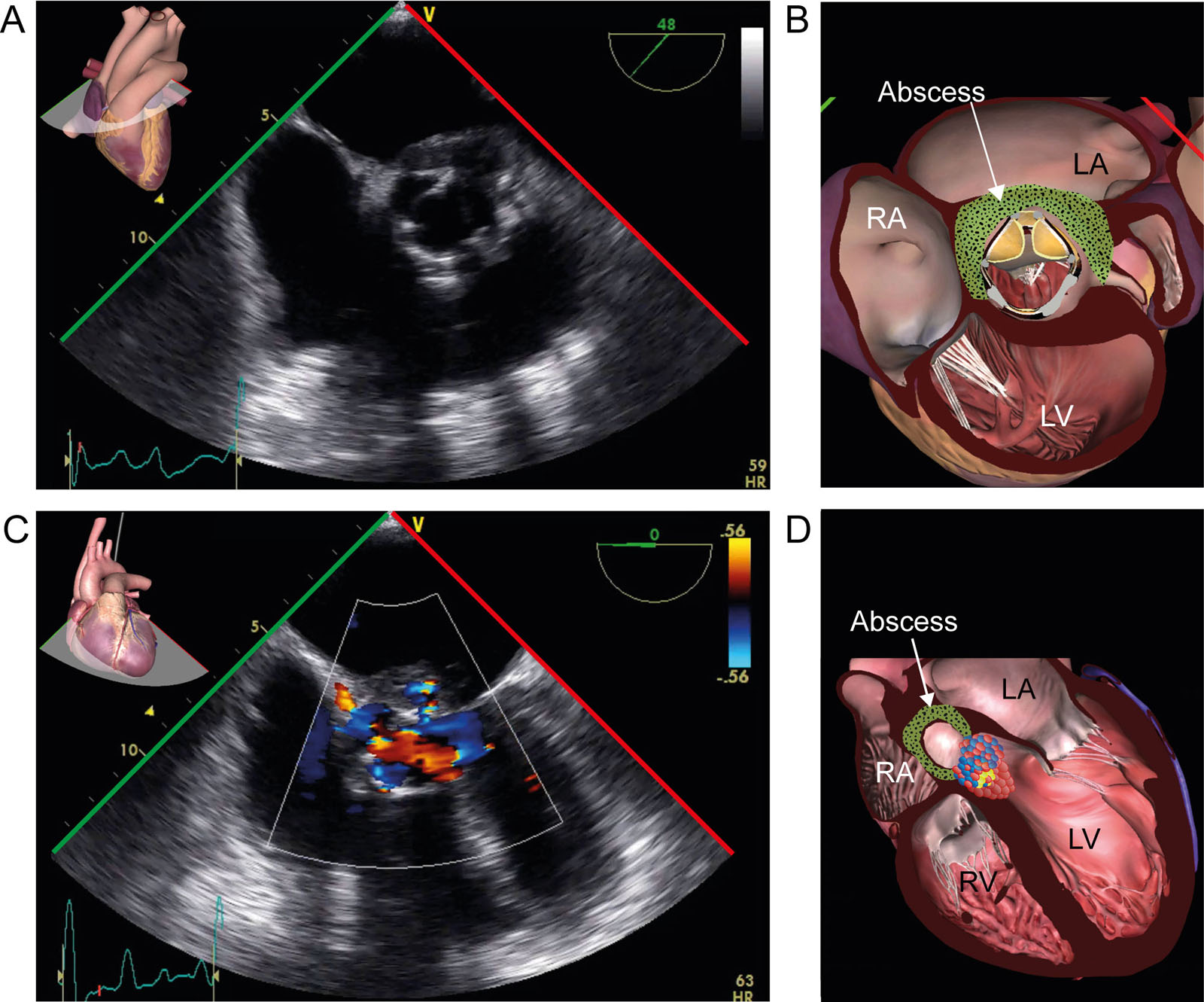

Prosthetic AoV abscess. (A, B) ME AoV SAX view demonstrates a heterogenous mass with echolucent areas at the aorto-mitral curtain level, suggesting a bioprosthetic AoV abscess. (C,D) On CFI, there is no fistula. Abbreviations: AoV, aortic valve; CFI, color flow imaging; LA, left atrium; LV, left ventricle; ME, mid-esophageal; RA, right atrium; RV, right ventricle; SAX, short-axis.
