Chapter 29: TEE in Non-Cardiac Surgery

Assessment of pericardial diseases using TEE is described, including effusion, tamponade, and constriction. Differences between constriction and restriction are highlighted. Imaging and video will depict topics.

1

Figures

There is no images for this chapter.

2

Videos

Chapter 29 Fig02B

Chapter 29 Fig03A

Chapter 29 Fig04AC

Chapter 29 Fig05A

Chapter 29 Fig06A

Chapter 29 Fig06B

Chapter 29 Fig06D

Chapter 29 Fig06G

Chapter 29 Fig09A

Chapter 29 Fig09C

Chapter 29 Fig09E

Chapter 29 Fig10A

Chapter 29 Fig10B

3

Tables

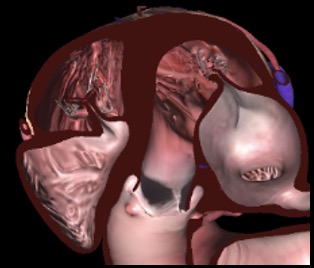

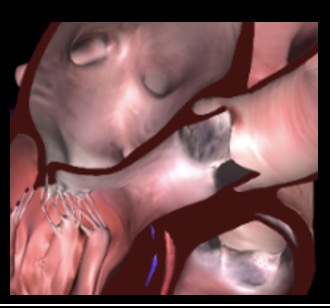

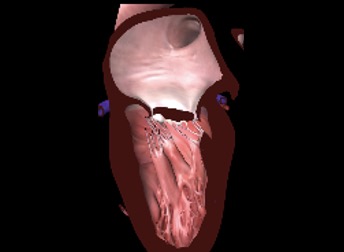

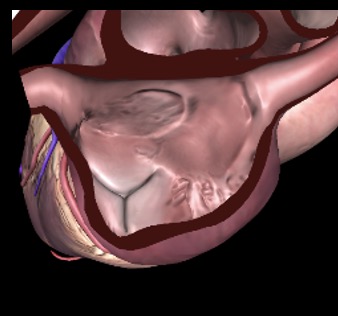

eTable 29.1 TEE views for non cardiac surgery and rescue TEE

TEE View	View- Technique	Role	Rescue & trauma TEE

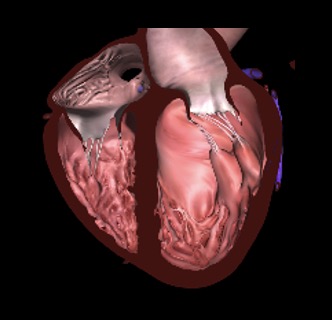

	ME 4C Angle: 0-10° (See Figure 4.7)	LV and RV function, WMA MV, TV abnormalities IVS, IAS shunts Pericardial effusion	Rescue view #1 combine with CFI of MV and TV Trauma view #1
	ME MC Angle: 50-70° (See Figure 4.10)	LV function, WMA MV abnormal

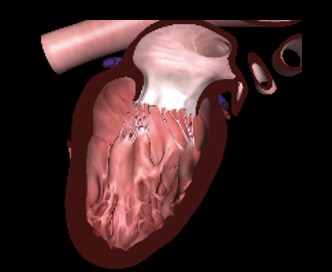

	ME 2C view Angle: 80-100° (See Figure 4.11)	LV function, WMA MV abnormal LAA thrombus	Rescue view #2 combine with CFI of MV
	ME LAX Angle: 50-70° (See Figure 4.12)	LV and RV function, WMA MV, AoV abnormal LVOTO, RVOTO IVS shunt Aortic root pathology CPR quality	Rescue view #3 combine with CFI of MV and AoV Trauma view #2
	ME AoV LAX Angle: 120-140° (See Figure 4.13)	MV, AoV abnormal LVOTO IVS shunt Aortic root pathology	Rescue view #4 combine with CFI of AoV

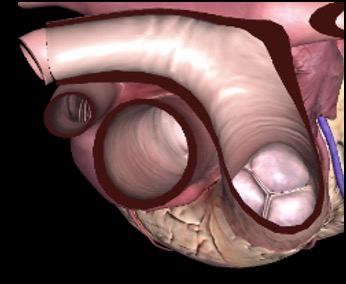

	ME Ascending aorta SAX Angle: 0-30° (See Figure 4.15)	Asc Ao, PA and SVC pathology

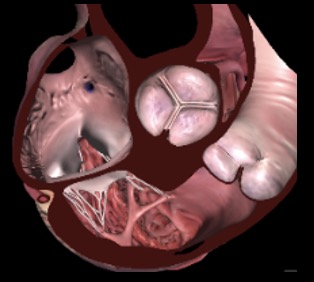

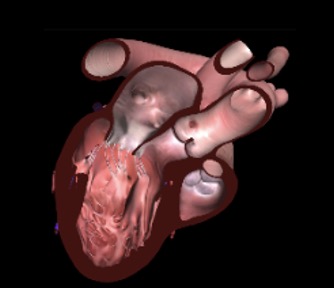

	ME AoV SAX Angle: 25-45° (See Figure 4.34)	AoV abnormal IVS, IAS shunt	Rescue view #5 combine with CFI of AoV

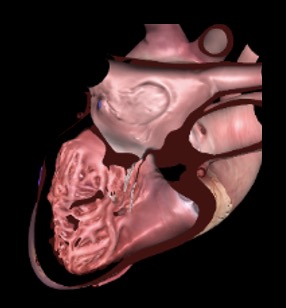

	ME RV inflow-outflow Angle: 50-70° (See Figure 4.28)	RV function, RVOTO AoV, PV, TV abnormal IVS, IAS shunt PA pathology Pericardial effusion	Rescue view #6 combine with CFI of IAS, TV and PV
	ME Modified bicaval TV Angle: 50-70° (See Figure 4.30)	TV abnormality IAS shunt IVC SVC pathology and cannulation
	ME Bicaval Angle: 90-110° (See Figure 4.29)	TV abnormality IAS shunt VC SVC pathology and cannulation Coronary sinus canulation	Rescue view #7 combine with CFI of IAS Trauma view #3

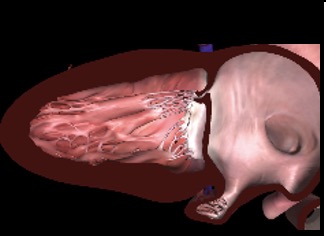

	TG Basal SAX Angle: 0-20° (See Figure 4.17)	LV and RV function, WMA MV, TV abnormal IVS shunt Pericardial effusion
	TG Mid papillary SAX Angle: 0-20° (See Figure 4.16)	LV and RV function, WMA IVS shunt Pericardial effusion	Rescue view #8 Trauma view #4
	DTG 5C Angle: 0-20° (See Figure 4.24)	MV, AoV abnormal LVOTO IVS shunt Aortic root pathology CO calculation
	TG 2C LAX Angle: 90-110° (See Figure 4.19)	LV function, WMA MV abnormal

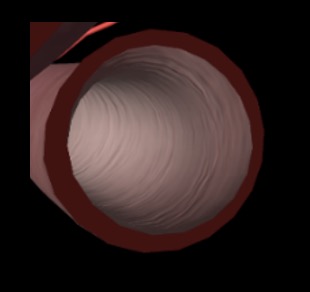

	Descending aorta SAX Angle: 50-70° (See Figure 4.25)	Aortic pathology and injury Left thorax pathology	Trauma view #5

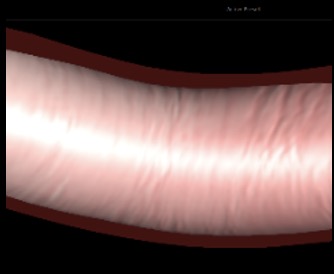

	Descending aorta LAX Angle: 90-100° (See Figure 4.25)	Aortic pathology and injury Left thorax pathology	Trauma view #6
Abbreviations: 2C, two-chamber; 4C, four-chamber; 5C, five-chamber; AoV, aortic valve; Asc Ao, ascending aorta; CFI, color flow imaging; CO, cardiac output; CPR, cardiopulmonary resuscitation; DTG, deep transgastric; IAS, interatrial septum; IVS, interventricular septum; LAA, left atrial appendage; LAX, long-axis; LV, left ventricle; LVOTO, left ventricular outflow tract obstruction; MC, mitral commissural; ME, mid-esophageal; MV, mitral valve; PA, pulmonary artery; PV, pulmonic valve; RVOTO, right ventricular outflow tract obstruction; SAX, short-axis; SV, splenic vein; SVC, superior vena cava; TEE, transesophageal echocardiography; TG, transgastric; TV, tricuspid valve; WMA, wall motion abnormalities. Adapted from Reeves⁹⁴ , Fayad¹, Giron-Arango et al.⁹⁵

eTable 29.4 Relative risk of vascular air embolism in common neurosurgical procedures

Common neurosurgical procedures	Relative risk*
Sitting position craniotomy Posterior fossa/neck surgery Craniosynostosis repair Spinal fusion Cervical laminectomy Peripheral nerve procedures Anterior neck surgery Burr hole neurosurgery	High High High Medium Medium Low Low Low
*Approximate expected reported incidences: high, > 25%; medium 5 to 25%; low, < 5%. Adapted from Mirski MA, et al.71
